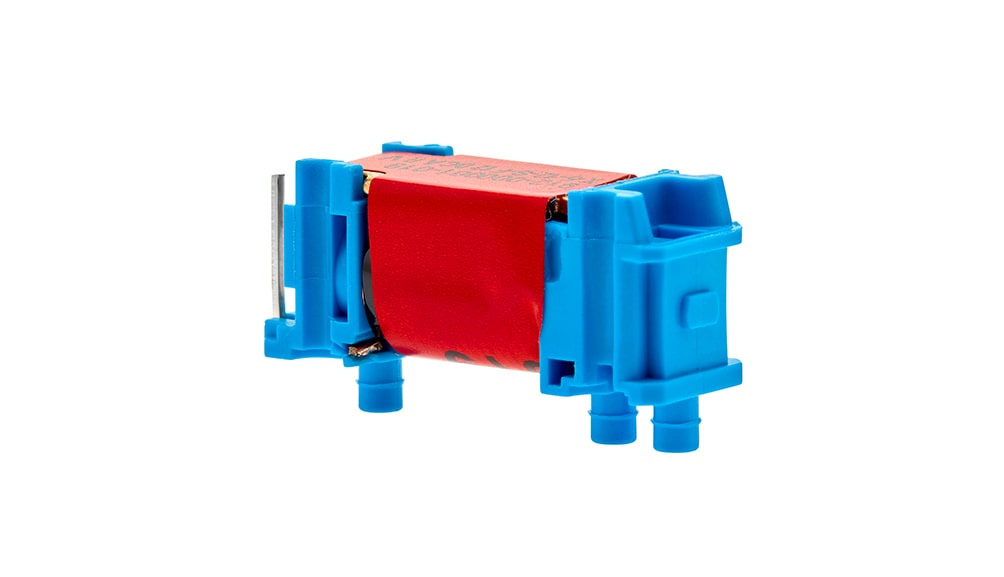

X-Valve - Miniature pneumatic solenoid valve
The Parker X-Valve® is a compact, 8 mm wide miniature pneumatic solenoid valve that combines multiple pneumatic functions in a single, space-saving package.
The valve is made of lightweight PBT plastic and is especially developed for portable applications where both space and energy consumption are severely limited.
The design is suitable for both manifold and barbed-tube connections and is available in 2-way normally closed or 3-way universal versions. X-Valve® provides a flexible and efficient solution for compact systems without compromising performance.
- Flow rate: Up to 11.0 SLPM
- Maximum flow rate11 SLPM
- Maximum operating pressure100 psi, 6.9 bar
- Opening size: 0.020, 0.030, 0.045 inch, 0.5, 0.030, 1.14 mm
- Maximum operating temperature122 °F, 50 °C
- Minimum operating temperature32 °F, 0 °C
- Function: 2/3-way NC, 2/3-way NO, 3-way distributor
- Cycles per lifetime25 million
- Activation type: Solenoid
- Type of operation: Electronic
- Management method: Current or voltage
- Power consumption: 0.5, 1.0 watt
- Input voltage3, 5, 12, 24 VDC
- Electrical connection: Short pins, long pins
- Body materialPBT (polybutylene terephthalate)
- Sealing material: FKM, EPDM, silicone
- Length: 0.92 inch, 23.4 mm
- Width: 0.31 inch, 7.9 mm
- Height: 0.48 inch, 12.2 mm
- Weight: 0.16 oz, 4.5 g
- Response time: < 20 ms max cycle, < 50 ms max cycle (EPDM model)
- Leakage rate: < 0,0116 sccm
- Port connectionBarbs for 1/16”, 1.5 mm I.D. hose (1/32” wall max)
- Mounting type: Manifold mounting (gasket required)
- Connection type: Fixing pin or mounting screw
- Connection size: 22 AWG (pin); 0-80 x 1/2″ binding head, Philips screw
- For liquid type: Gas
- Industrial application: Portable equipment, blood pressure monitoring, wound treatment, air and oxygen supply, sensor reset
- Respiratory tract
- Anesthesia
- Patient monitoring
- Patient treatment
- Direct PC and side mounting enables compact and efficient system design.
- Wide range of pressure options (6, 30 and 100 psi) to meet different application requirements.
- Lightweight ventilated construction is ideal for portable applications.
- Available low power model (0.5 watts) for continuous applications.
- RoHS compliant
- Portable equipment
- Blood pressure monitoring
- Wound care
- Air and oxygen supply
- Resetting of sensors
