HPX Rupture Disc Family

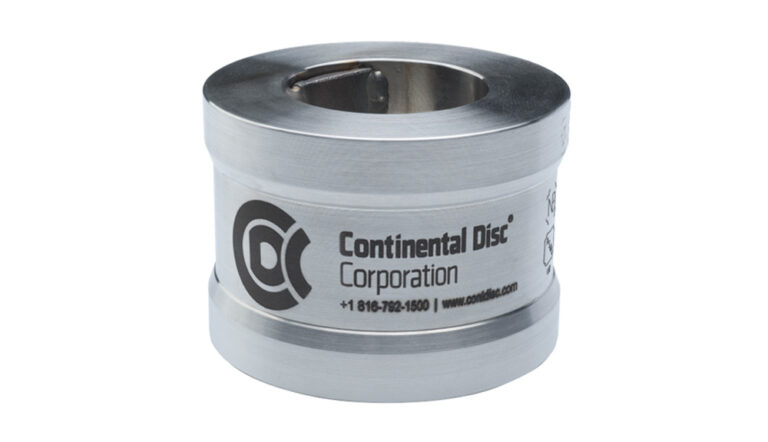

The Continental Disc HPX-CTG™ cartridge rupture disc addresses the need to minimize potential leak paths in chemical applications. The welded rupture disc cartridge assembly, built with HPX® technology, seamlessly integrates between traditional flange connections. By eliminating the need for a separate holder, the welded design significantly reduces the risk of leaks compared to conventional rupture disc systems. As a seal-welded version of our HPX rupture disc, the HPX-CTG ensures a leak-tight assembly, making it ideal for applications involving toxic or hazardous media or where emissions regulations are a concern. With the proven durability of the HPX rupture disc — type tested to five million cycles — the HPX-CTG enhances safety and reliability while minimizing emissions risks in critical applications. The single-piece HPX-CTG assembly simplifies installation and minimizes the risk of damaging the rupture disc during installation and handling. Its fully welded design eliminates torque sensitivity, alleviating concerns about inconsistent torque application and the higher torque required for certain gaskets, ensuring a more reliable and flexible installation.

The Continental Disc APX™ rupture disc is a semicircular scored reverse acting rupture disc that is ideal for liquid or gas/vapor applications. In terms of performance, precision, and durability, the APX rupture disc outperforms the competition. One of several benefits of the APX is the flexibility to tailor it to the demands of the customer, particularly regarding flexibility in holder materials of construction. Designed for use in toxic and corrosive environments, the APX rupture disc combines Continental Disc’s rupture disc performance with materials that stand up to the most challenging process media. The APX continues the legacy of the flagship HPX® product with low Kr factors, high cycling, and quality certifications that you’ve come to expect from Continental Disc Corporation. Optimum material thickness and manufacturing tooling design provide not only the full opening and accurate burst rating you expect, but also longer service life at higher operating-to-burst pressure ratios demanded by today’s process industries.

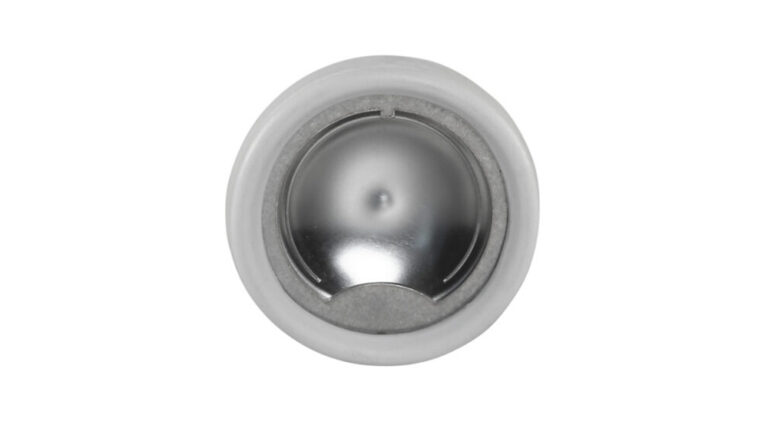

The CDC 3/4” SANITRX HPX® Rupture Disc is a semicircular scored reverse acting rupture disc designed specifically for applications in the pharmaceutical, food & beverage and biotech industries. This rupture disc is available to fit between standard sanitary ferrules. The 3/4” SANITRX HPX rupture disc is shipped in sanitary, environmentally friendly, non-toxic packaging.

The Continental Disc IntegrX-HPX™ rupture disc addresses the need within the biopharmaceutical industry to improve process performance, reliability, and safety. The pioneering and innovative IntegrX-HPX combines the unrivaled performance of the legendary HPX with ASME BPE compliant crevice-free inlet design, removing the need for integral seals. Traditional sanitary rupture disc designs limit access to the full spectrum of benefits delivered by HPX technology. The IntegrX-HPX is a semi-circular, scored, reverse-acting rupture disc, perfectly suited for cyclic process conditions from full vacuum to 90-95% of the stamped rating. Its welded design mitigates the impact of downstream piping loads on the rupture disc burst pressure and overall performance. Continental Disc incorporated an external tag, aiding installation and providing clearly visible identification in the field and easy access to marked data. IntegrX-HPX rupture disc offers a unique opportunity to boost efficiency, safety, and keep cost down by utilizing legendary HPX service life. The bold new design reduces maintenance, minimizes the chance of installation damage, and allows you to control the source and type of seal material without affecting rupture disc performance.

A semicircular scored, reverse acting rupture disc designed specifically for applications in the pharmaceutical, food & beverage and biotech industries that require pressures above SANITRX HPX. Ideal in a wide range of sanitary and hygienic applications, SANITRX HPX II rupture discs fit between industry-standard sanitary ferrules, NA-CONNECT® flanges, or SANITRX fittings, are in compliance with the essential criteria of the ASME BPE standards of cleanability, traceability and sterilization, and are shipped in sanitary, environmentally friendly, nontoxic packaging.

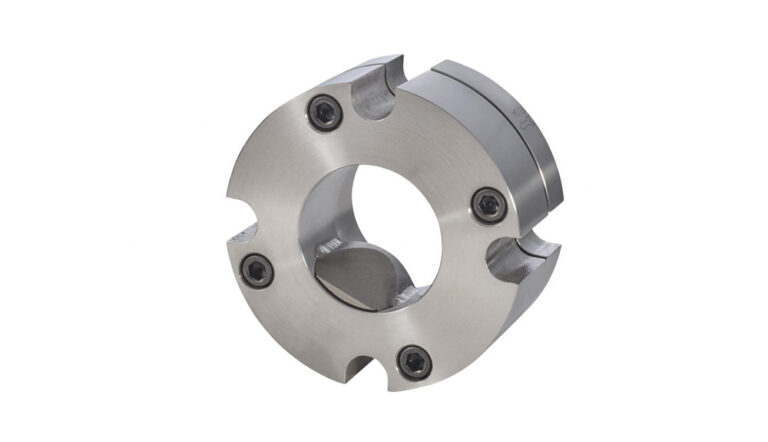

Get consistently accurate rupture disc installation with the HPX-PT pre-torqued holder. Prior to installation, you’ll install and fit the disc in your workshop. Then all you need to do is complete the assembly between the flanges in the process system relief stream. The HPX-PT pre-torqued holder incorporates high-strength steel socket-head cap screws for accurate loading and sealing of the rupture disc.

The pharmaceutical, biotech, food and beverage industries rely on the high-precision SANITRX HPX rupture disc family – a sanitary rupture disc with the perfect combination of industry-leading performance with ASME BPE, USP Class VI and 3A compliance. The SANITRX HPX rupture disc is a semicircular, scored, reverse-acting rupture disc, capable of withstanding cycles from full vacuum to 95% of the stamped rating. It is available in 90 or 95% maximum recommended operating ratio.

We manufactured the versatile, reliable HPX-Ta from tantalum – the only suitable material for processing highly corrosive media such as bromine, chlorine, HCL, nitric acid or sulfuric acid. The HPX-Ta has a 90% maximum operating ratio and designed for a minimum of 1,000 cycles from full vacuum to maximum recommended operating pressure. It’s also a member of the HPX rupture disc family.

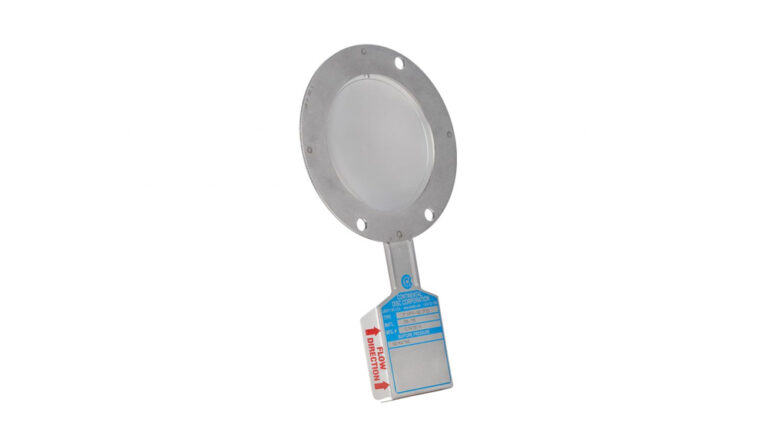

Push back against overpressure with the reverse-acting HPX rupture disc – your most versatile, cost-effective weapon in the battle against overpressure. Engineered to fit nearly any overpressure protection application, the HPX Rupture Disc has proven performance in excess of 5 million cycles, operating up to 95% of burst pressure, proving it the best in the industry – and the best choice for your operation. It’s also part of a larger product line of rupture discs that have proven themselves time and time again.
