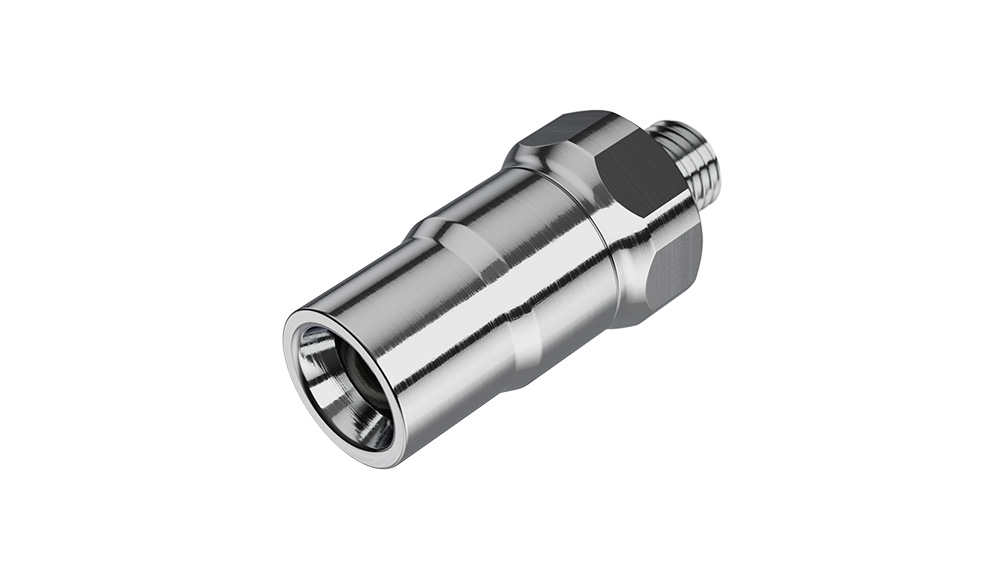

Everis BLQ4 series quick couplers
Everis® BLQ4 Series quick disconnects offer extremely reliable, drip-free connections and disconnects that protect sensitive electronics. Designed specifically for liquid cooling in rack-mount systems, the BLQ4 utilizes patented technology that eliminates drips and withstands long-term connections.
- Pressure: 8.3 bar
- Temperature range: -17°C to 115°C
- Material: Main components in chromed brass
- Threads: SAE and BSP threads in various sizes
- Temperature range: -17°C - +115°C
- Spill-free design
- No spillage when connecting or disconnecting
- Disconnection under pressure without dripping
- Possible to disconnect under pressure without leakage
- Redundant seals
- Extra protection against leakage
- Frictionless valve
- Enables long periods in connected mode
- Robust construction
- Withstands prolonged and repeated use
- Axial tolerance at connection
- Provides full flow even with incomplete connection
- One-piece design for casing and insert
- Space-saving solution
| Article Number | Designation | Size/Thread | HEX | Type | Shut-off valve | Order quantity | Availability | Price | Add to cart (st) |
|---|---|---|---|---|---|---|---|---|---|
| BLQ4D30004 | Straight coupling with SAE thread, female | 1/4 SAE-4: 7/16-20 | 22mm | Female | Yes | 10 pcs/package | Login to see availability and prices | ||
| BLQ4D30006 | Straight coupling with SAE thread, female | 3/8 SAE-6: 9/16-18 | 22mm | Female | Yes | 10 pcs/package | Login to see availability and prices | ||
| BLQ4D30008 | Straight coupling with SAE thread, female | 1/2 SAE-8: 3/4-16 | 22mm | Female | Yes | 10 pcs/package | Login to see availability and prices | ||
| BLQ4D31004 | Straight coupling with G / BSSP thread, female | 1/2 SAE-8: 3/4-16 | 22mm | Female | Yes | 10 pcs/package | Login to see availability and prices | ||
| BLQ4D31006 | Straight coupling with G / BSSP thread, female | G 3/8 (BSPP) | 22mm | Female | Yes | 10 pcs/package | Login to see availability and prices | ||
| BLQ4D46004 | Straight coupling with SAE thread, male | 1/4 SAE-4: 7/16-20 | 22mm | Male | Yes | 10 pcs/package | Login to see availability and prices | ||
| BLQ4D46006 | Straight coupling with SAE thread, male | 3/8 SAE-6: 9/16-18 | 22mm | Male | Yes | 10 pcs/package | Login to see availability and prices | ||
| BLQ4D47004 | Straight coupling with G / BSSP thread, male | G 1/4 (BSPP) | 22mm | Male | Yes | 10 pcs/package | Login to see availability and prices | ||
| BLQ4D47006 | Straight coupling with G / BSSP thread, male | G 3/8 (BSPP) | 22mm | Male | Yes | 10 pcs/package | Login to see availability and prices | ||
