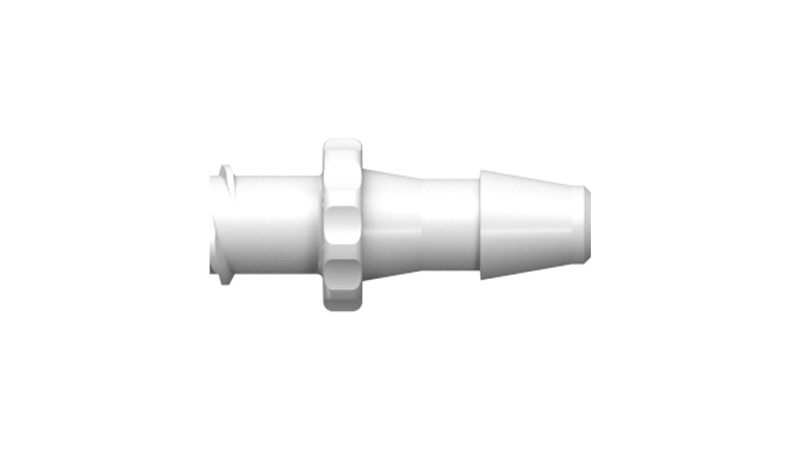

Luer coupling with hose nipple, ISO 80369-7
Luer coupling with hose nipple, ISO 80369-7 is a safe coupling solution for connection between Luer and hose.
Compatible with ISO 80369-7 for standardized connection.
Fits hose with inner diameter 1/16″ (1.6 mm), 3/32″ (2.4 mm), 1/8″ (3.2 mm), 5/32″ (4.0 mm) or 3/16″ (4.8 mm).
Available in nylon, polypropylene or polycarbonate. Suitable for use in sensitive environments.
Brand:
Nordson Medical
Product Overview
Nordson MEDICAL Luer Connectors
- Compatible with autoclaving, EtO sterilization, and gamma irradiation
- Complies with the requirements of ISO 594-1 and ISO 594-2
Requests for quotation
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
Certificates & Requirements
ISO 594-1
ISO 594-2
| Article Number | Designation | Material | Availability | Price | Add to cart |
|---|---|---|---|---|---|
| FTLLV210-1 | 1/16 inch barb ISO 80369-7 Compliant | nylon | Login to see availability and prices | ||
| FTLLV210-6005 | 1/16 inch barb ISO 80369-7 Compliant | Polypropylene | Login to see availability and prices | ||
| FTLLV210-9 | 1/16 inch barb ISO 80369-7 Compliant | Polycarbonate | Login to see availability and prices | ||
| FTLLV220-1 | 3/32 inch barb ISO 80369-7 Compliant | nylon | Login to see availability and prices | ||
| FTLLV220-6005 | 3/32 inch barb ISO 80369-7 Compliant | Polypropylene | Login to see availability and prices | ||
| FTLLV220-9 | 3/32 inch barb ISO 80369-7 Compliant | Polycarbonate | Login to see availability and prices | ||
| FTLLV230-1 | 1/8 inch barb ISO 80369-7 Compliant | nylon | Login to see availability and prices | ||
| FTLLV230-6005 | 1/8 inch barb ISO 80369-7 Compliant | Polypropylene | Login to see availability and prices | ||
| FTLLV230-9 | 1/8 inch barb ISO 80369-7 Compliant | Polycarbonate | Login to see availability and prices | ||
| FTLLV240-1 | 5/32 inch barb ISO 80369-7 Compliant | nylon | Login to see availability and prices | ||
| FTLLV240-6005 | 5/32 inch barb ISO 80369-7 Compliant | Polypropylene | Login to see availability and prices | ||
| FTLLV240-9 | 5/32 inch barb ISO 80369-7 Compliant | Polycarbonate | Login to see availability and prices | ||
| FTLLV250-1 | 3/16 inch barb ISO 80369-7 Compliant | nylon | Login to see availability and prices | ||
| FTLLV250-6005 | 3/16 inch barb ISO 80369-7 Compliant | Polypropylene | Login to see availability and prices | ||
| FTLLV250-9 | 3/16 inch barb ISO 80369-7 Compliant | Polycarbonate | Login to see availability and prices | ||
