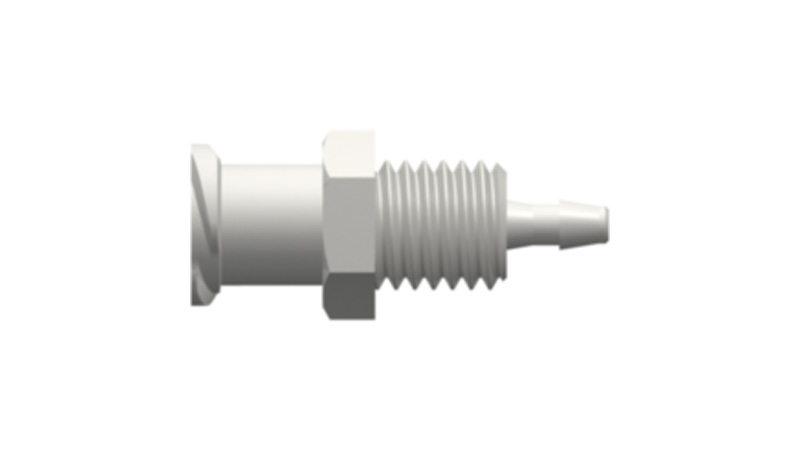

Female Luer with Luer thread for panel mounting, 1/4-28 UNF to 200 series hose nipple
Luer Female with Luer Panel Mount Thread, 1/4-28 UNF to 200 Series Hose Nipple is a secure coupling solution for connection between Luer Female, Panel Mount and Hose.
The Luer thread provides a stable connection and is designed for secure panel mounting.
The 1/4-28 UNF thread allows reliable attachment to compatible systems.
Available with hose nipple for 1/16″ (1.6 mm), 3/32″ (2.4 mm) and 1/8″ (3.2 mm) hose. Made of white nylon, black nylon, animal-free natural colored polypropylene, transparent polycarbonate or natural colored Kynar PVDF.
Brand:
Nordson Medical
Product Overview
Nordson MEDICAL Luer Connectors
- Compatible with autoclaving, EtO sterilization, and gamma irradiation
- Complies with the requirements of ISO 594-1 and ISO 594-2
Nordson MEDICAL Luer Connectors
- Compatible with autoclaving, EtO sterilization, and gamma irradiation
- Complies with the requirements of ISO 594-1 and ISO 594-2
Requests for quotation
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
Certificates & Requirements
ISO 594-1
ISO 594-2
| Article Number | Designation | Slang ID | Material | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|
| FTLLB210-1 | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 1/16" (1.6 mm) | White Nylon | Login to see availability and prices | ||
| FTLLB210-6005 | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 1/16" (1.6 mm) | Animal-Free Natural Polypropylene | Login to see availability and prices | ||
| FTLLB210-9 | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 1/16" (1.6 mm) | Clear Polycarbonate | Login to see availability and prices | ||
| FTLLB210-J2A | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 1/16" (1.6 mm) | Natural Kynar PVDF | Login to see availability and prices | ||
| FTLLB220-1 | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 3/32" (2.4 mm) | White Nylon | Login to see availability and prices | ||
| FTLLB220-2 | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 3/32" (2.4 mm) | Black Nylon | Login to see availability and prices | ||
| FTLLB220-6005 | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 3/32" (2.4 mm) | Animal-Free Natural Polypropylene | Login to see availability and prices | ||
| FTLLB220-9 | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 3/32" (2.4 mm) | Clear Polycarbonate | Login to see availability and prices | ||
| FTLLB220-J2A | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 3/32" (2.4 mm) | Natural Kynar PVDF | Login to see availability and prices | ||
| FTLLB230-1 | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 1/8" (3.2 mm) | White Nylon | Login to see availability and prices | ||
| FTLLB230-2 | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 1/8" (3.2 mm) | Black Nylon | Login to see availability and prices | ||
| FTLLB230-6005 | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 1/8" (3.2 mm) | Animal-Free Natural Polypropylene | Login to see availability and prices | ||
| FTLLB230-J2A | Female Luer Thread Style Panel Mount 1/4-28 UNF to 200 Series Barb | 1/8" (3.2 mm) | Natural Kynar PVDF | Login to see availability and prices | ||
