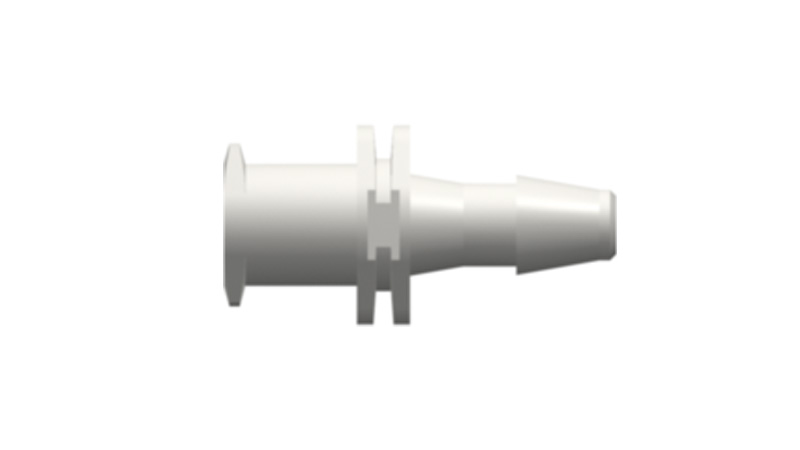

Luer lock female for 200 series hose nipple
The Luer-lock female connector for the 200 Series tubing nipple is a secure coupling solution for connecting a Luer-lock female connector to tubing.
Fits hose with inner diameter 1/16″ (1.6 mm), 3/32″ (2.4 mm), 1/8″ (3.2 mm) or 5/32″ (4.0 mm).
Available in white or red nylon, animal-free natural-colored polypropylene, clear polycarbonate, radiation-stable polycarbonate, or natural-colored Kynar PVDF for reliable performance and use in sensitive environments.
Brand:
Nordson Medical
Product Overview
Nordson MEDICAL Luer Connectors
- Compatible with autoclaving, EtO sterilization, and gamma irradiation
- Complies with the requirements of ISO 594-1 and ISO 594-2
Requests for quotation
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
Certificates & Requirements
ISO 594-1
ISO 594-2
| Article Number | Designation | Slang ID | Material | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|
| FTL210-1 | Female Luer Lug Style to 200 Series Barb | 1/16" (1.6 mm) | White Nylon | Login to see availability and prices | ||
| FTL210-6005 | Female Luer Lug Style to 200 Series Barb | 1/16" (1.6 mm) | Animal-Free Natural Polypropylene | Login to see availability and prices | ||
| FTL210-9 | Female Luer Lug Style to 200 Series Barb | 1/16" (1.6 mm) | Clear Polycarbonate | Login to see availability and prices | ||
| FTL220-1 | Female Luer Lug Style to 200 Series Barb | 3/32" (2.4 mm) | White Nylon | Login to see availability and prices | ||
| FTL220-3 | Female Luer Lug Style to 200 Series Barb | 3/32" (2.4 mm) | Red Nylon | Login to see availability and prices | ||
| FTL220-6005 | Female Luer Lug Style to 200 Series Barb | 3/32" (2.4 mm) | Animal-Free Natural Polypropylene | Login to see availability and prices | ||
| FTL220-9010 | Female Luer Lug Style to 200 Series Barb | 3/32" (2.4 mm) | Stable Polycarbonate | Login to see availability and prices | ||
| FTL220-J2A | Female Luer Lug Style to 200 Series Barb | 3/32" (2.4 mm) | Natural Kynar PVDF | Login to see availability and prices | ||
| FTL230-1 | Female Luer Lug Style to 200 Series Barb | 1/8" (3.2 mm) | White Nylon | Login to see availability and prices | ||
| FTL230-6005 | Female Luer Lug Style to 200 Series Barb | 1/8" (3.2 mm) | Animal-Free Natural Polypropylene | Login to see availability and prices | ||
| FTL230-9 | Female Luer Lug Style to 200 Series Barb | 1/8" (3.2 mm) | Clear Polycarbonate | Login to see availability and prices | ||
| FTL230-9010 | Female Luer Lug Style to 200 Series Barb | 1/8" (3.2 mm) | Stable Polycarbonate | Login to see availability and prices | ||
| FTL240-1 | Female Luer Lug Style to 200 Series Barb | 5/32" (4.0 mm) | White Nylon | Login to see availability and prices | ||
