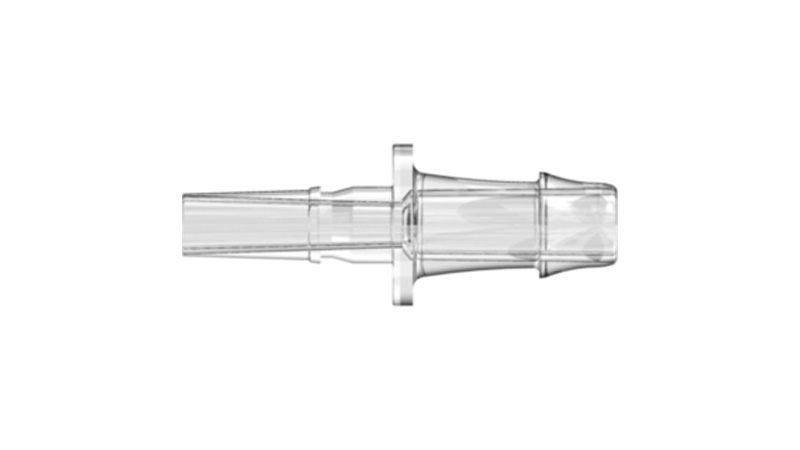

Luer male for 500 series hose nipple
The Luer male to 500 series hose nipple is a secure coupling solution for connection between Luer male and hose.
The 500 series hose nipple provides a stable connection to compatible hose sizes.
Designed for easy installation in systems where a reliable transition between Luer connection and hose is required.
Available with hose nipple for 1/16” (1.6 mm), 3/32" (2.4 mm), 1/8" (3.2 mm), 5/32" (4.0 mm), 3/16" (4.8 mm) and 1/4" (6.4 mm) hose. Made of white nylon, black nylon, animal-free natural colored polypropylene, animal-free black polypropylene or transparent polycarbonate.
Brand:
Nordson Medical
See variations
(18)
Product Overview
Nordson MEDICAL Luer Connectors
- Compatible with autoclaving, EtO sterilization, and gamma irradiation
- Complies with the requirements of ISO 594-1 and ISO 594-2
Requests for quotation
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
Certificates & Requirements
ISO 594-1
ISO 594-2
| Article Number | Designation | Slang ID | Material | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|
| MLRL004-1 | Male Luer to 500 Series Barb | 1/16" (1.6 mm) | White Nylon | Login to see availability and prices | ||
| MLRL004-6005 | Male Luer to 500 Series Barb | 1/16" (1.6 mm) | Animal-Free Natural Polypropylene | Login to see availability and prices | ||
| MLRL007-1 | Male Luer to 500 Series Barb | 3/32" (2.4 mm) | White Nylon | Login to see availability and prices | ||
| MLRL007-2 | Male Luer to 500 Series Barb | 3/32" (2.4 mm) | Black Nylon | Login to see availability and prices | ||
| MLRL007-6005 | Male Luer to 500 Series Barb | 3/32" (2.4 mm) | Animal-Free Natural Polypropylene | Login to see availability and prices | ||
| MLRL007-9 | Male Luer to 500 Series Barb | 3/32" (2.4 mm) | Clear Polycarbonate | Login to see availability and prices | ||
| MLRL013-1 | Male Luer to 500 Series Barb | 1/8" (3.2 mm) | White Nylon | Login to see availability and prices | ||
| MLRL013-6005 | Male Luer to 500 Series Barb | 1/8" (3.2 mm) | Animal-Free Natural Polypropylene | Login to see availability and prices | ||
| MLRL013-9 | Male Luer to 500 Series Barb | 1/8" (3.2 mm) | Clear Polycarbonate | Login to see availability and prices | ||
| MLRL025-1 | Male Luer to 500 Series Barb | 5/32" (4.0 mm) | White Nylon | Login to see availability and prices | ||
| MLRL025-6005 | Male Luer to 500 Series Barb | 5/32" (4.0 mm) | Animal-Free Natural Polypropylene | Login to see availability and prices | ||
| MLRL025-6012 | Male Luer to 500 Series Barb | 5/32" (4.0 mm) | Animal-Free Black Polypropylene | Login to see availability and prices | ||
| MLRL025-9 | Male Luer to 500 Series Barb | 5/32" (4.0 mm) | Clear Polycarbonate | Login to see availability and prices | ||
| MLRL035-1 | Male Luer to 500 Series Barb | 3/16" (4.8 mm) | White Nylon | Login to see availability and prices | ||
| MLRL035-6005 | Male Luer to 500 Series Barb | 3/16" (4.8 mm) | Animal-Free Natural Polypropylene | Login to see availability and prices | ||
| MLRL035-9 | Male Luer to 500 Series Barb | 3/16" (4.8 mm) | Clear Polycarbonate | Login to see availability and prices | ||
| MLRL055-1 | Male Luer to 500 Series Barb | 1/4" (6.4 mm) | White Nylon | Login to see availability and prices | ||
| MLRL055-9 | Male Luer to 500 Series Barb | 1/4" (6.4 mm) | Clear Polycarbonate | Login to see availability and prices | ||
