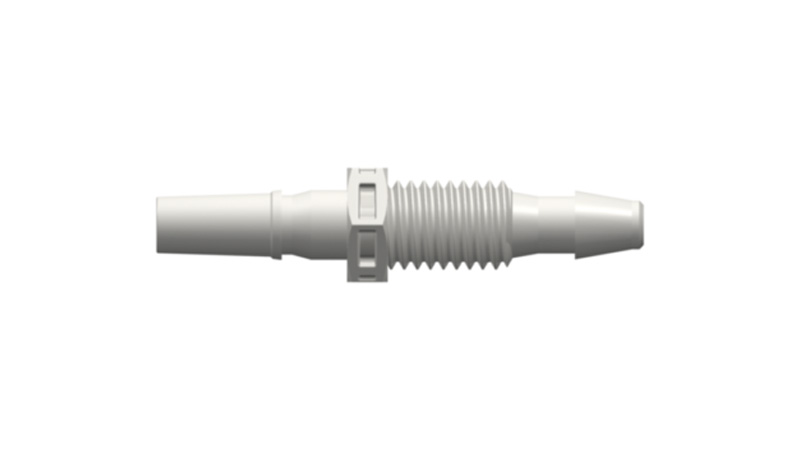

Luer male for panel mounting to 200 series hose nipple, 10-32 UNF thread
Luer male panel mount to 200 series hose nipple, 10-32 UNF thread is a secure coupling solution for connection between Luer male, panel mount and hose.
Designed for stable and secure panel mounting.
The 10-32 UNF thread allows reliable attachment to compatible systems.
Available with hose nipple for 1/16″ (1.6 mm), 3/32″ (2.4 mm) and 1/8″ (3.2 mm) hose. Made of animal-free natural colored polypropylene or white nylon.
Brand:
Nordson Medical
Product Overview
Nordson MEDICAL Luer Connectors
- Compatible with autoclaving, EtO sterilization, and gamma irradiation
- Complies with the requirements of ISO 594-1 and ISO 594-2
Requests for quotation
Fill out the form below to submit a request for a quote.
"*"indicates required fields
Certificates & Requirements
ISO 594-1
ISO 594-2
| Article Number | Designation | Slang ID | Material | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|
| MLRLB210-6005 | Male Luer Panel Mount to 200 Series Barb | 1/16" (1.6 mm) | Animal-Free Natural Polypropylene | - | - | |
| MLRLB220-1 | Male Luer Panel Mount to 200 Series Barb | 3/32" (2.4 mm) | White Nylon | - | - | |
| MLRLB230-1 | Male Luer Panel Mount to 200 Series Barb | 1/8" (3.2 mm) | White Nylon | - | - | |
