Dosing valve

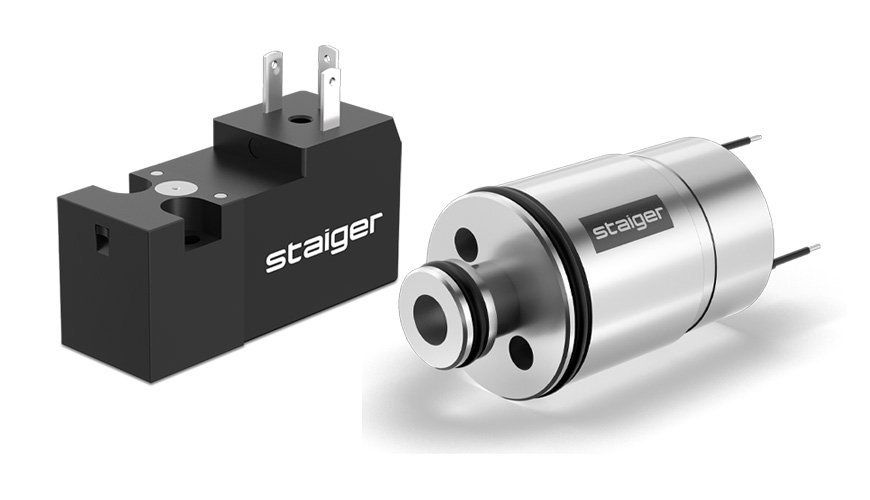

Compact, media-isolated 3/2-way valve from Staiger for controlling air and fluids in applications where the medium must be separated from the valve’s electrical components. The valve can be configured with various sealing materials, such as EPDM, FKM, or FFKM, depending on the medium and chemical resistance requirements. The valve is available in 12 V DC, nominal size 1.6 mm, and various connection types, such as flange connection or hose connection. It is well-suited for compact systems where precision, operational reliability, and material compatibility are key factors.

The Parker SRS series consists of compact and lightweight 10 mm solenoid valves in PBT plastic. They are developed for portable medical devices and other applications where space and power consumption are limited. The valves are designed for manifold mounting and utilize an integrated manifold seal along with several different electrical connection options. This simplifies both pneumatic and electronic installations. With flow rates up to 18 slpm and inlet pressures up to 85 psig, the SRS series offers high performance, low energy consumption and quiet operation. This makes it an ideal solution for demanding portable instrumentation and medical applications.
