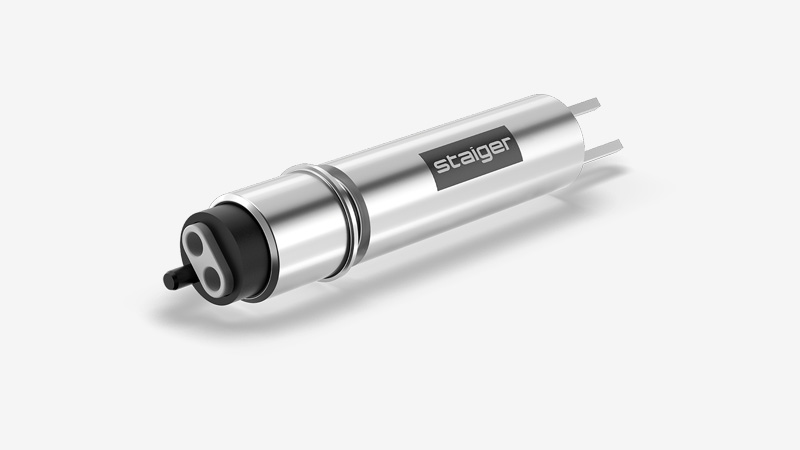

Media-isolated 2/2-way microvalve, 5 mm
Compact 2/2-way micro solenoid valve with media isolation, designed for ultra-low flow rates and precise micro-dosing applications.
Brand:
Staiger
Product Overview
Product specification
- 2/2-way NC function
- Cartridge connection
- Nozzle size 0.2 mm
- Weight: 2.4 g
- Any mounting orientation
- Enclosure Class IP60
- Operating pressure 0.1 to 1.3 bar(g)
- Maximum outlet pressure 0.2 bar(g)
- Pressure resistance greater than 5 bar(g)
- Flow rate of 0.7 L/min at maximum pressure
- Kv value 0.02 L/min
- Switching time: 1 ms
- Service life of up to 100 million switching cycles
- Ambient temperature: +5 °C to +50 °C
- Media temperature: +5 °C to +50 °C
- Storage temperature: -30 °C to +80 °C
- Internal leakage rate < 0.005 ml/min
- External leakage rate < 0.005 ml/min
- Media quality ≤ 10 µm
- For air, oxygen, and inert gases
Characteristics
- 2/2-way NC with media isolation
- Precise flow rates and high repeatability
- Very compact design with an outer diameter of 5 mm
- Long service life and very fast cycle times
