Staiger

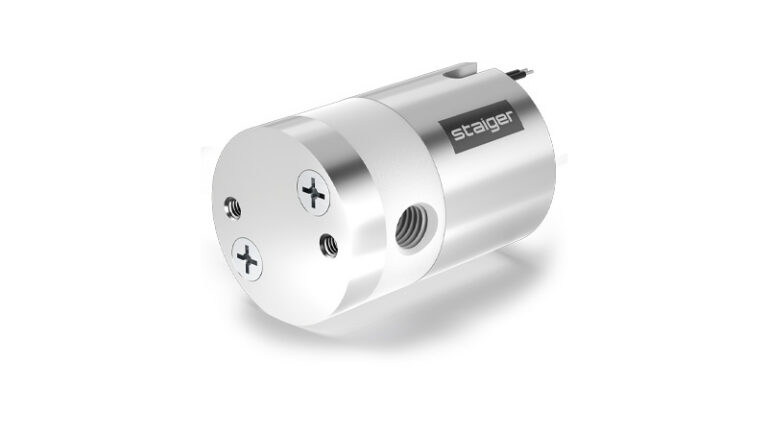

Media-sealed 3/2-way solenoid valve with PTFE, designed for applications with higher flow requirements. The valve has a flow range from Kv = 0.4 l/min up to 1.5 l/min and is suitable for controlling air and liquids where the medium needs to be separated from the valve’s electrical components. The valve can be configured with various nominal sizes, such as 1.6 mm, 2.4 mm, and 4.0 mm, to adapt to flow, pressure, and application requirements. It is well-suited for systems where operational reliability, material resistance, and higher flow capacity are key factors.

Compact 2/2-way micro solenoid valve with media isolation, designed for ultra-low flow rates and micro-dosing applications. The design separates the media from the valve’s electrical components, making the valve suitable for precise control of very small volumes of air or liquid. The valve can be configured with different nominal sizes, such as 0.1 mm, 0.2 mm, and 0.3 mm, to accommodate the desired flow rate and application requirements.

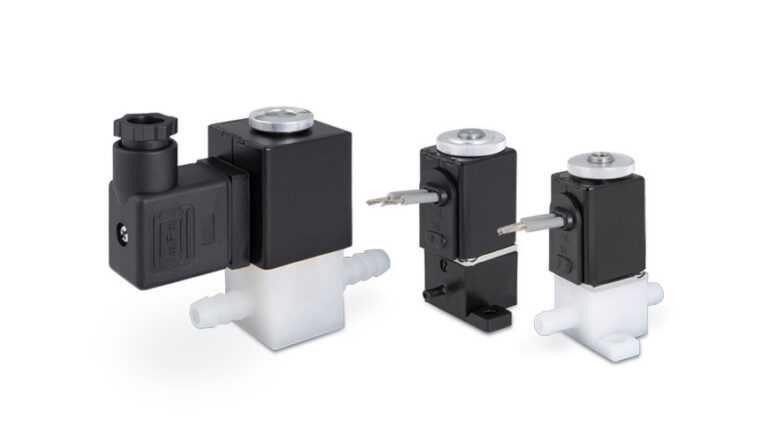

Our plastic valves with diaphragm separation are also suitable for aggressive liquids and gases. These plastic valves are also ideal for use in humid environments where high corrosion resistance is required. Unlike metal valves, which can rust when exposed to water and air without proper protection, this is not a problem for our plastic valves. Thanks to their corrosion-free design, the valves offer a long service life, high operational reliability, and dependable performance even in demanding industrial applications.

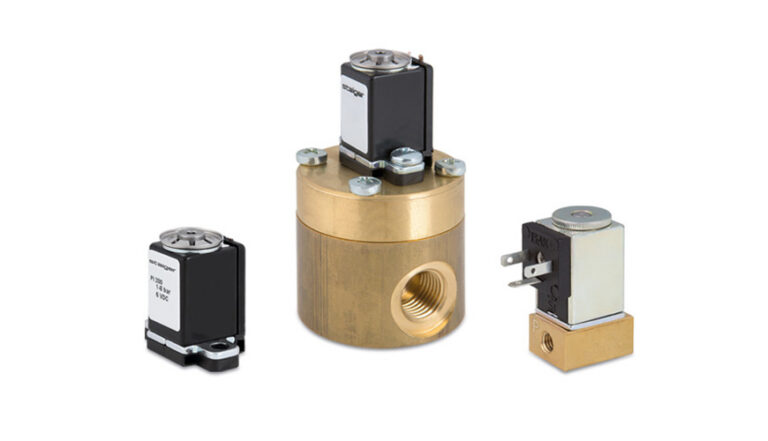

By utilizing the pulse solenoid principle, this solenoid valve consumes energy only during the actual switching process. This enables extremely energy-efficient systems and reduces energy consumption in industrial applications. Compared to a solenoid valve with a permanently energized coil, there is also virtually no heating of the valve, the medium, or the surrounding area. The result is a reliable and energy-efficient solenoid valve suitable for applications where low heat generation, high performance, and long service life are key requirements.

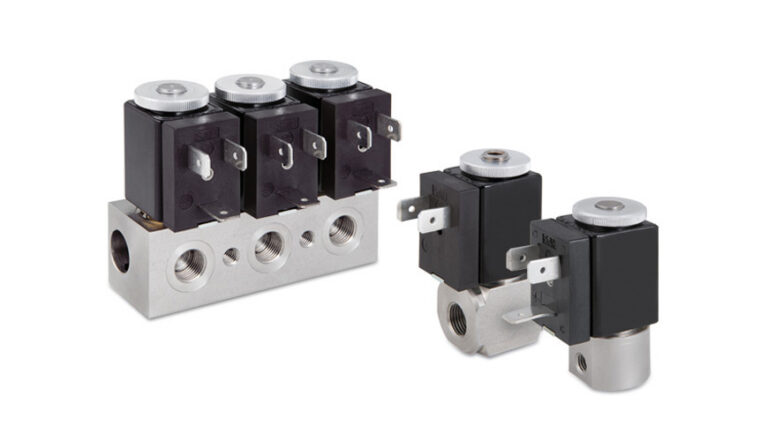

Stainless steel solenoid valves for neutral and mildly corrosive liquids, gases, and vapors. Thanks to their compact design, these valves require minimal installation space and are suitable for industrial applications where high operational reliability and corrosion resistance are key factors.

Compact, media-isolated 3/2-way valve from Staiger for controlling air and fluids in applications where the medium must be separated from the valve’s electrical components. The valve can be configured with different sealing materials, such as EPDM or FKM, depending on the medium and chemical resistance requirements. The valve is available in 12 V DC, with a nominal size of 2.0 mm and various connection types, such as flange or hose connections. It is well-suited for compact systems where precision, reliability, and material compatibility are key factors.

Compact, media-isolated 3/2-way valve from Staiger for controlling air and fluids in applications where the medium must be separated from the valve’s electrical components. The valve can be configured with various sealing materials, such as EPDM, FKM, or FFKM, depending on the medium and chemical resistance requirements. The valve is available in 12 V DC, with a nominal size of 1.6 mm and various connection types, such as flange or hose connections. It is well-suited for compact systems where precision, reliability, and material compatibility are key factors.

Compact 2/2-way micro solenoid valve with media isolation, designed for ultra-low flow rates and precise micro-dosing applications.
