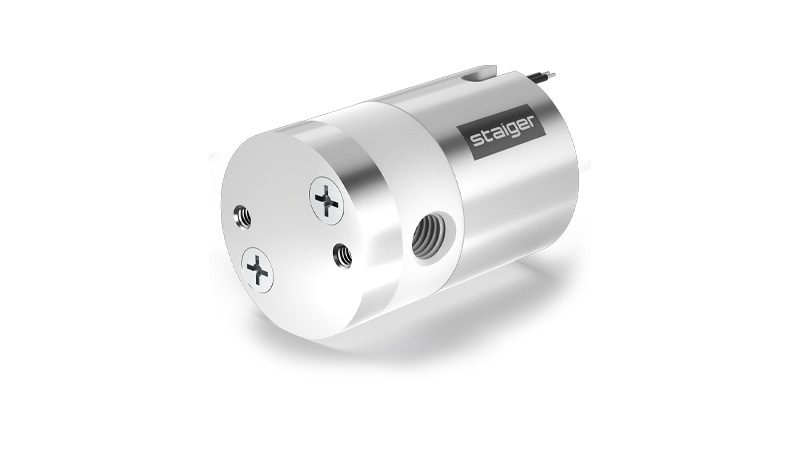

Media-sealed 3/2-way valve, PTFE
Miniature valves

Media-sealed 3/2-way valve, PTFE

Media-isolated 3/2-way solenoid valve with PTFE, designed for applications with higher flow requirements. The valve has a flow range from Kv = 0.4 l/min up to 1.5 l/min and is suitable for controlling air and liquids where the medium must be isolated from the valve’s electrical components.

The valve can be configured with various nominal sizes—such as 1.6 mm, 2.4 mm, and 4.0 mm—to accommodate flow, pressure, and application requirements. It is well-suited for systems where operational reliability, material resistance, and higher flow capacity are important factors.

Staiger
Request offer
Product Overview
Product specification
  • 3/2-way Uni function
  • Connection: 1/4-28 UNF
  • Nozzle size 1.6 mm
  • Weight: 90 g
  • Any mounting orientation
  • Operating pressure: -1 to 2 bar(g)
  • Flow rate of 16 l/min at maximum pressure
  • Kv value: max. 0.4 L/min
  • Ambient temperature: -29 °C to +70 °C
  • Media temperature: -29 °C to +70 °C
  • Storage temperature: -29 °C to +70 °C
  • Internal leakage rate < 0.2 ml/min
  • External leakage rate < 0.2 ml/min
  • Media: Air, gases, and water
  • Other media upon request
Characteristics
  • 3/2-way media-insulated valve
  • Bidirectional operation and minimal dead volume
  • Very compact design
  • Low energy consumption
