Duplex pump - Precision mixing

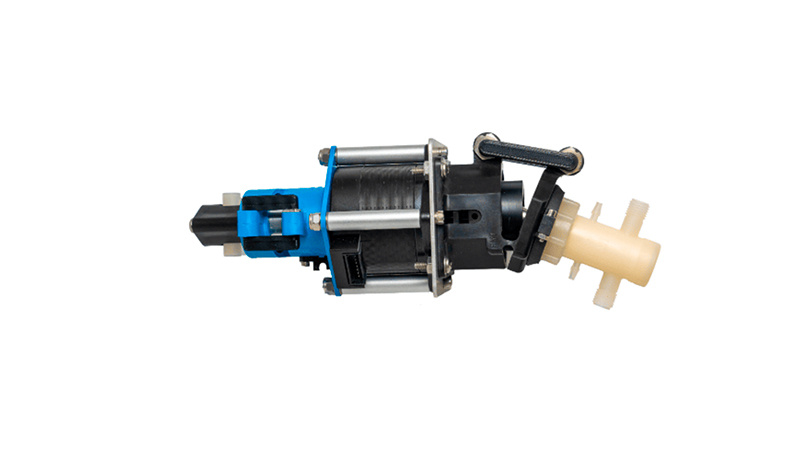

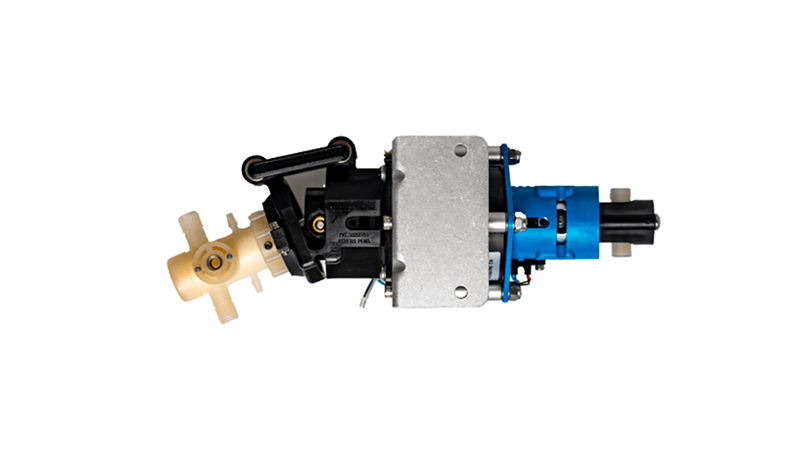

The duplex pump consists of two valveless pump heads directly coupled to a single variable stepper motor drive. The displacement of each pump head can be adjusted independently, and different sizes of pump heads can be used in combinations to achieve dosing ratios from 1:1 up to 100:1, from microliters to liters.
Brand:
Fluid Metering
See variations
(1)
Product Overview
Product specification
- Engine frame: 23″ frame Stepper motor
- Electrical (rated current): 2,5A
- Operating temperature range: 0 °C to 50 °C (32 °F to 122 °F)
Request for quotation
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
| Article Number | Dosage volume range (ml/rev) | Flow rate range (ml/min) | Engine speed range | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|
| Duplex Pump | 0.005-2.56 mL/rev¹ ² | 0.025-2560 mL/min¹ ² | 1000 rpm (depending on fluid setting) | Login to see availability and prices | ||
