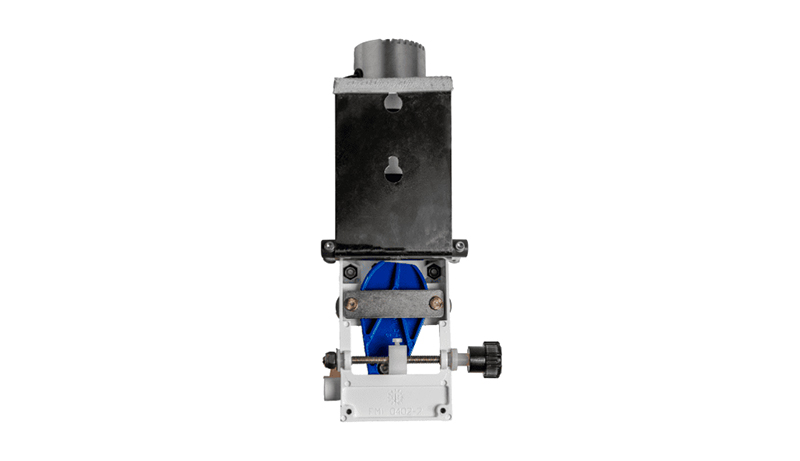

QBLDC series - Laboratory pump
The QBLDC pump offers a range of features and benefits designed to ensure high accuracy in applications where precise fluid control is essential. Ideal for general laboratory and industrial use
Brand:
Fluid Metering
See variations
(8)
Product Overview
Characteristics
- Made of ceramic and stainless steel, providing broad fluid compatibility and long-lasting performance.
- The liquid path is inert and corrosion resistant, making it suitable for various chemicals.
- Flexible mounting options make it easy to install in different environments.
- The efficient motor design helps to reduce energy consumption.
- Offers interchangeable pumphead and drive modules for different flow and material combinations.
Note: When ordering, the pump drive and pump head are priced separately.
Product specification
- Dosage volume: 0.003-1.28 ml/rev¹ ²
- Operating pressure: 0-100 psi (0-6.89 bar)¹ ²
- Engine type: 115 or 230 V AC with 50/60 Hz
- El: 0,5 A
Request for quotation
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
| Article Number | Engine speed | Flow rate range (ml/min) | Availability | Price | Add to cart |
|---|---|---|---|---|---|
| QBLDC150 | 150 rpm | 0.45-192.0 mL/min¹ ² | Login to see availability and prices | ||
| QBLDC1550 | 1550 rpm | 4.65-1984 mL/min¹ ² | Login to see availability and prices | ||
| QBLDC20 | 20 rpm | 0.06-25.6 mL/min¹ ² | Login to see availability and prices | ||
| QBLDC250 | 250 rpm | 0.75-320 mL/min¹ ² | Login to see availability and prices | ||
| QBLDC400 | 400 rpm | 1.2-512 mL/min¹ ² | Login to see availability and prices | ||
| QBLDC500 | 500 rpm | 1.5-640 mL/min¹ ² | Login to see availability and prices | ||
| QBLDC55 | 55 rpm | 0.165-70.4 mL/min¹ ² | Login to see availability and prices | ||
| QBLDC6 | 6 rpm | 0.0165-7.68 mL/min¹ ² | Login to see availability and prices | ||
