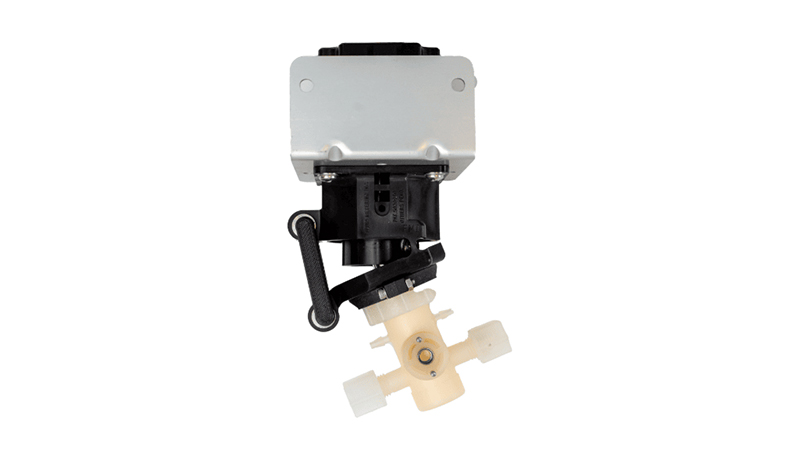

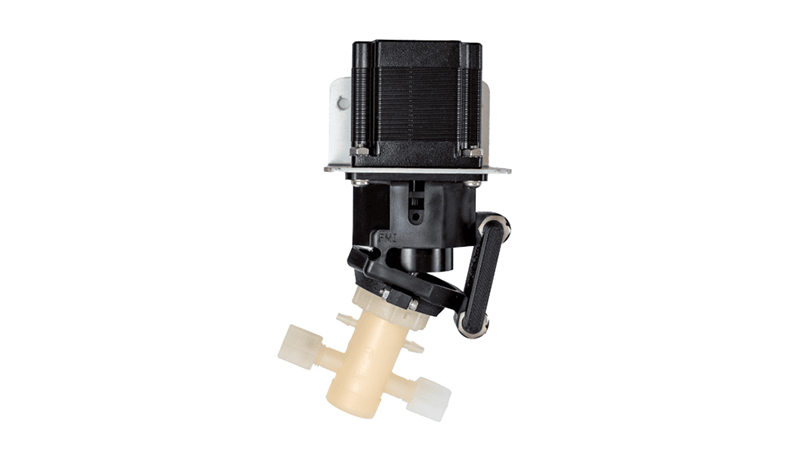

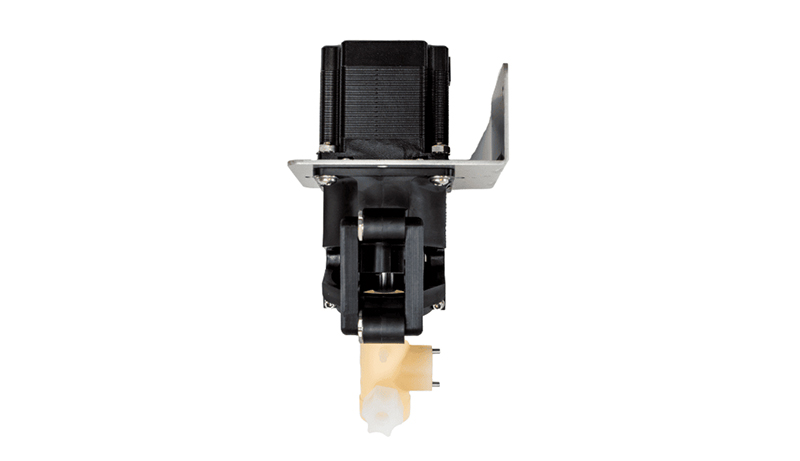

STFQ Series - Adjustable micro volume dispenser pump
The STFQ is an advanced miniaturized fluidics system designed to control small volumes of fluid at the microscale level for a wide range of applications. It is currently available in standard configurations from 250 µL to 1.25 mL in 1 µL increments.
Brand:
Fluid Metering
Product Overview
Product specification
motorized ram
- Rotation: NEMA 23 (57mm)
Electrical (rated current)
- Rotation: 2.3A
Operating temperature range
- 0°C to 50°C (32°F to 122°F)
Operating pressure range
- 0-60 psig (0-4.1 bar)2
Request for quotation
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
Certificates & Requirements
REACH
RoHS
| Article Number | Dosage volume range (μl/rev) | Flow rate range (ml/min) | Engine speed range | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|
| STFQ | 250-1250 μl/rev¹ | 0.25-1250 mL/min¹ | Rotational: 1-1000 rpm | Login to see availability and prices | ||
