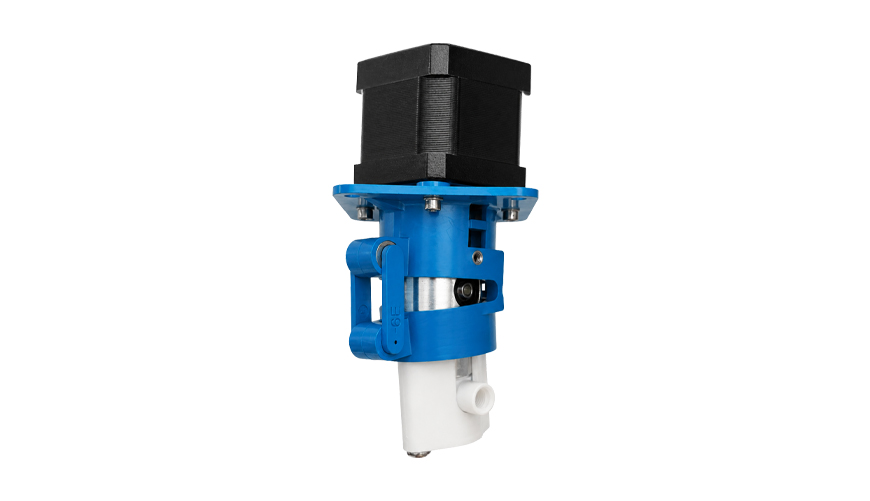

STF Series - Adjustable positive displacement dosing pump
The STF is an advanced miniaturized fluidics system designed to control small volumes of fluid at the microscale level for a wide range of applications. It is currently available in standard configurations from 5 μl to 400 μl in 1 μl increments.
Brand:
Fluid Metering
See variations
(1)
Product Overview
Product specification
motorized ram
- Rotation: NEMA 17 (43 mm)
Electrical (rated current)
- Rotation: 2.0 A
Operating temperature range
- 0 °C to 50 °C (32 °F to 122 °F)
Operating pressure range
- 0-100 psig (0-6.89 bar)2
Request for quotation
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
Certificates & requirements that the product meets
REACH
RoHS
| Article Number | Dosage volume range (μl/rev) | Flow rate range (ml/min) | Engine speed range | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|
| STF | 5-400 μl/rev¹ | 0.005-400 mL/min¹ | Rotational: Up to 1000 rpm | Login to see availability and prices | ||
