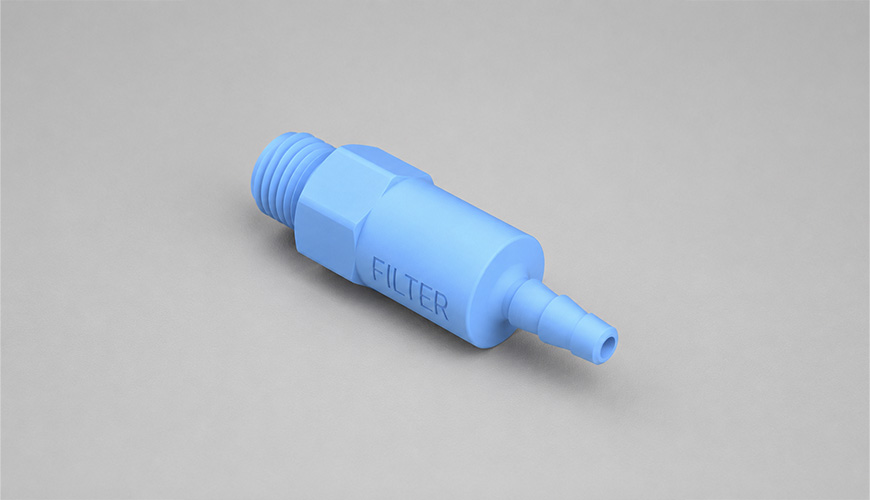

Filtered adapter from hose connection to thread
Air Logic's miniature plastic filters protect sensitive components by preventing particles and debris from accumulating. They are designed to protect flow control components, such as throttling orifices, from clogging.
The filters are robust, compact and cost-effective. With filtration grades from 5 µm to 500 µm, the right filtration level can be selected without creating unnecessarily high flow resistance. They are used in medical devices, analytical instruments, consumer products and more.
Brand:
Air Logic
Product Overview
Requests for quotation
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
| Article Number | Designation | Material | Availability | Price | Add to cart |
|---|---|---|---|---|---|
| F96025B80 | 25um (Micron, µm) Filter, 10-32 Thread to 1/16 Inch Barb Adaptor | Polysulfone (PSU)Stainless Steel (SS) | Login to see availability and prices | ||
| F96025B85 | 25um (Micron, µm) Filter, 10-32 Thread to 1/8 Inch Barb Adaptor | Polysulfone (PSU)Stainless Steel (SS) | Login to see availability and prices | ||
| F96043B80 | 43um (Micron, µm) Filter, 10-32 Thread to 1/16 Inch Barb Adaptor | Polysulfone (PSU)Stainless Steel (SS) | Login to see availability and prices | ||
| F96043B85 | 43um (Micron, µm) Filter, 10-32 Thread to 1/8 Inch Barb Adaptor | Polysulfone (PSU)Stainless Steel (SS) | Login to see availability and prices | ||
| F9605B80 | 5um (Micron, µm) Filter, 10-32 Thread to 1/16 Inch Barb Adaptor | Polysulfone (PSU)Stainless Steel (SS) | Login to see availability and prices | ||
| F9605B85 | 5um (Micron, µm) Filter, 10-32 Thread to 1/8 Inch Barb Adaptor | Polysulfone (PSU)Stainless Steel (SS) | Login to see availability and prices | ||
| F96073B80 | 73um (Micron, µm) Filter, 10-32 Thread to 1/16 Inch Barb Adaptor | Polysulfone (PSU)Stainless Steel (SS) | Login to see availability and prices | ||
| F96073B85 | 73um (Micron, µm) Filter, 10-32 Thread to 1/16 Inch Barb Adaptor | Polysulfone (PSU)Stainless Steel (SS) | Login to see availability and prices | ||
Related products
Threaded inline filters
Art.nr:
N/A
Threaded inline filters protect sensitive components from contamination in pneumatic and fluid circuits. The filters have a flat stainless steel cloth filter medium and are designed for small units or as supplementary filtration in larger systems.
They have no fixed flow direction, as the filter surface and enclosure volume are equal on both sides of the filter. The filters protect the circuit from assembly residues such as Teflon tape, damaged O-rings and machining chips.
The product works well with Air Logic's range of couplings for application-specific requirements, such as swivel function and replaceable filters.
Inline filter with hose connection
Art.nr:
N/A
Inline filters with hose connection protect sensitive components from contamination in liquid and gas circuits. Air Logic's miniature filters are designed for small units or as supplementary filtration in larger systems.
The filters use a flat filter medium in stainless steel cloth or polypropylene fabric. They have no fixed flow direction, as the filter surface and enclosure volume are equal on both sides of the filter.
Polysulfone filters have a low profile design for confined spaces, while polypropylene filters have a larger diameter for increased filter area.
Intake filter
Art.nr:
N/A
Intake filters provide a filtered inlet path for liquid or gas into a system or device. The product may also be referred to as a dip tube filter, dip tube strainer, filtered suction or bottle filter.
The large opening reduces flow resistance and makes it easy to control any accumulation of particles and debris. The filter housing is designed to maintain a functional flow even if the filter is against a flat surface, for example inside a bottle.
