Versilon™ F-5500-A
Versilon™ F-5500-A from Saint-Gobain is a peristaltic pump hose with very good resistance to corrosive chemicals, oils, fuels, solvents and most mineral acids. The hose is highly flexible and abrasion resistant, making it well suited for peristaltic pumps handling highly corrosive media.
The hose is made from a proprietary fluoroelastomer with physical and chemical properties adapted for demanding fluid handling. It is particularly suitable for dry cleaning lines and solvent recovery systems, where other flexible hoses may have limited service life.
Versilon™ F-5500-A can be used in continuous operation at temperatures up to +204°C. The opaque black color helps protect light-sensitive media during transfer. The hose also resists premature cracking and aging when exposed to ozone, sunlight and weather.
The hose is also approved for food contact.
- Hardness: Shore A 60
- Tensile strength Psi (Mpa): 1400 (9.3)
- Elongation at break (%): 300
- Tear strength, Ib-f/in (kN/m): 100 (17.5)
- Specific gravity: 1.9
- Water absorption (%): 0.23
- Compression set constant deformation (%): 37
- Temperature range: -51°C - + 204°C.
- Impact toughness, brittle temperature: -51°C.
- Tensile strength at 100% elongation Psi (Mpa): 350 (2.4)
- Excellent resistance to corrosive chemicals, oils, fuels and solvents
- Resistant to ozone, sunlight and weathering
- Opaque black color to protect light-sensitive liquids
- Solvent recovery systems
- Process monitoring equipment
- Peristaltic pumping of concentrated acids
- Fuel and lubricant lines in high temperature equipment
- O-rings, seals and gaskets
- Sampling and venting of hot, alkaline air
- Pipes for dry cleaning fluids
- Chemical process engineering and chemical processing
| Article Number | ID (mm) | OD (mm) | Availability | Price | Add to cart |
|---|---|---|---|---|---|
| AGN00002 | 1.59 | 3.18 | Login to see availability and prices | ||
| AGN00007 | 3.18 | 6.35 | Login to see availability and prices | ||
| AGN00012 | 4.76 | 7.94 | Login to see availability and prices | ||
| AGN00017 | 6.35 | 9.53 | Login to see availability and prices | ||
| AGN00022 | 7.94 | 11.11 | Login to see availability and prices | ||
| AGN00027 | 9.53 | 12.70 | Login to see availability and prices | ||
Related products
-
Versilon™ SPT-50 TF
Platinum-cured silicone hose for peristaltic pumps. -
Tygon® A-60-F IB
Art.nr: Tygon® A-60-F IBIdeal for use in high temperature food applications.6 variations -
Tygon® XLCOMP 60 IB
High performance hose for resin injection and transfer molding of composite parts. -

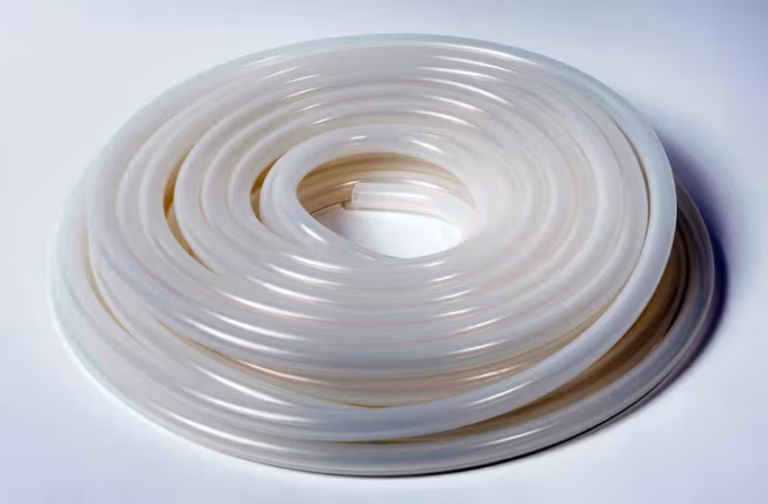

Versilon™ SPT-55 TF
