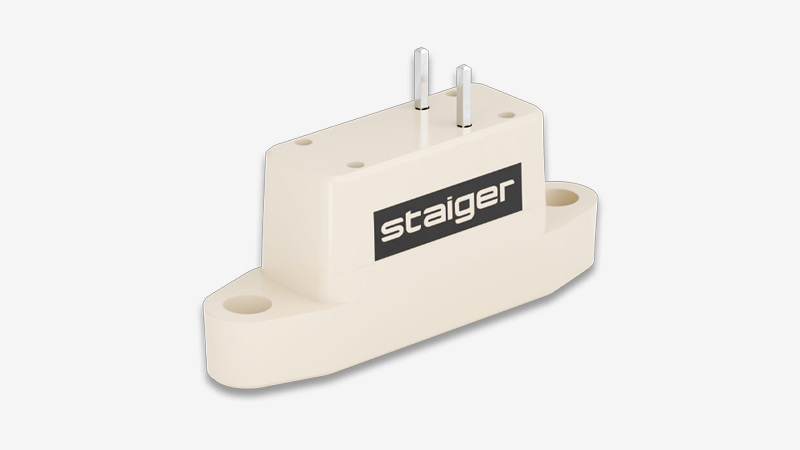

Media-isolated SMA 2/2-way microvalve, 5 mm
Kompakt 2/2-vägs mikromagnetventil med media-isolering, framtagen för ultralåga flöden och mikrodoseringsapplikationer. Konstruktionen separerar mediet från ventilens elektriska delar, vilket gör ventilen lämplig för precis styrning av mycket små mängder luft eller vätska.
Ventilen kan konfigureras med olika nominella storlekar, exempelvis 0,1 mm, 0,2 mm och 0,3 mm, för att anpassas efter önskat flöde och applikationens krav.
Brand:
Staiger
Request offer
Product Overview
Product specification
- 2/2-vägs NC-funktion
- Flänsanslutning
- Munstycksstorlek 0,8 mm
- Vikt cirka 0,8 g
- Valfritt monteringsläge
- Kapslingsklass IP60
- Drifttryck 0 till 3 bar(g)
- Maximalt utlopstryck 2 bar(g)
- Flödeshastighet > 2 l/min vid Δp 1 bar
- Kv-värde cirka 0,08 l/min
- Omkopplingstid < 70 ms
- Omgivningstemperatur +10 °C till +55 °C
- Medietemperatur +10 °C till +55 °C
- Lagringstemperatur -20 °C till +90 °C
- Internvolym < 6,5 µl
- Intern läckagegrad (med luft) < 1 × 10⁻³ mbar l/s
- Extern läckagegrad (med luft) < 1 × 10⁻³ mbar l/s
- Mediekvalitet ≤ 10 µm
- För luft, inerta gaser och vätskor
Characteristics
- Mediaisolerad konstruktion
- Låg energiförbrukning
- Låg internvolym
- Autoklaverbar
- Proportionell drift möjlig
