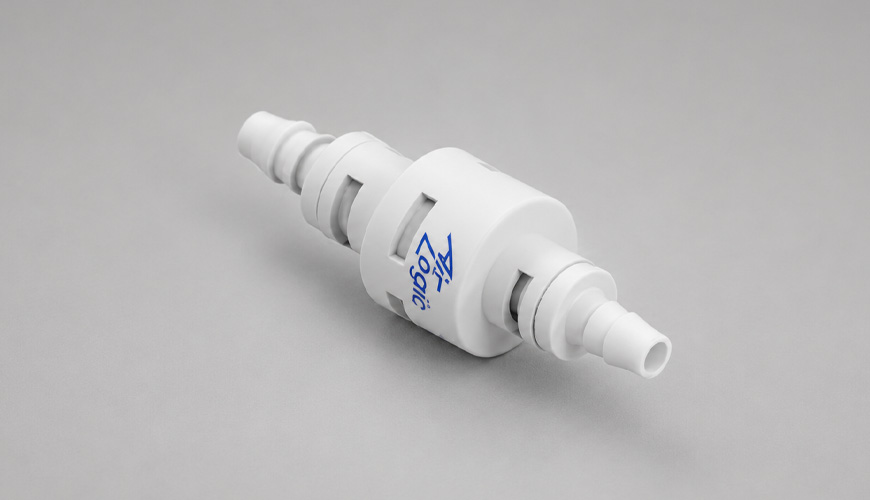

Spring-loaded ball check valves
Spring-loaded ball check valves prevent flow in one direction and allow flow in the opposite direction. Check valves can also be called one-way valves or non-return valves.
The valves are equipped with swivel couplings and a ball and spring combination that opens when the pressure difference exceeds the spring force. The pressure difference required for the valve to open is called the opening pressure.
Air Logic spring-loaded ball check valves can be configured with different couplings, O-rings and opening pressures.
Brand:
Air Logic
Product Overview
Requests for quotation
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
| Article Number | Designation | Material | Availability | Price | Add to cart |
|---|---|---|---|---|---|
| F28044051S0 | Spring-Loaded Ball Check Valve, 1/16" Barb Swivel fittings, Silicone O-Rings, Normally Closed, 1psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
| F28044051S0B | Spring-Loaded Ball Check Valve, 1/16" Barb Swivel fittings, Buna O-Rings, Normally Closed, 1psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
| F28044051S5 | Spring-Loaded Ball Check Valve, 1/8" Barb Swivel fittings, Silicone O-Rings, Normally Closed, 1psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
| F28044051S5B | Spring-Loaded Ball Check Valve, 1/8" Barb Swivel fittings, Buna O-Rings, Normally Closed, 1psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
| F28044051S8 | Spring-Loaded Ball Check Valve, 1/4" Barb Swivel fittings, Silicone O-Rings, Normally Closed, 1psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
| F28044051S8B | Spring-Loaded Ball Check Valve, 1/4" Barb Swivel fittings, Buna O-Rings, Normally Closed, 1psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
| F28044054S0 | Spring-Loaded Ball Check Valve, 1/16" Barb Swivel fittings, Silicone O-Rings, Normally Closed, 4psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
| F28044054S0B | Spring-Loaded Ball Check Valve, 1/16" Barb Swivel fittings, Buna O-Rings, Normally Closed, 4psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
| F28044054S5 | Spring-Loaded Ball Check Valve, 1/8" Barb Swivel fittings, Silicone O-Rings, Normally Closed, 4psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
| F28044054S5B | Spring-Loaded Ball Check Valve, 1/8" Barb Swivel fittings, Buna O-Rings, Normally Closed, 4psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
| F28044054S8 | Spring-Loaded Ball Check Valve, 1/4" Barb Swivel fittings, Silicone O-Rings, Normally Closed, 4psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
| F28044054S8B | Spring-Loaded Ball Check Valve, 1/4" Barb Swivel fittings, Buna O-Rings, Normally Closed, 4psi Crack Pressure | Polypropylene (PP) Stainless-Steel (SS) | Login to see availability and prices | ||
