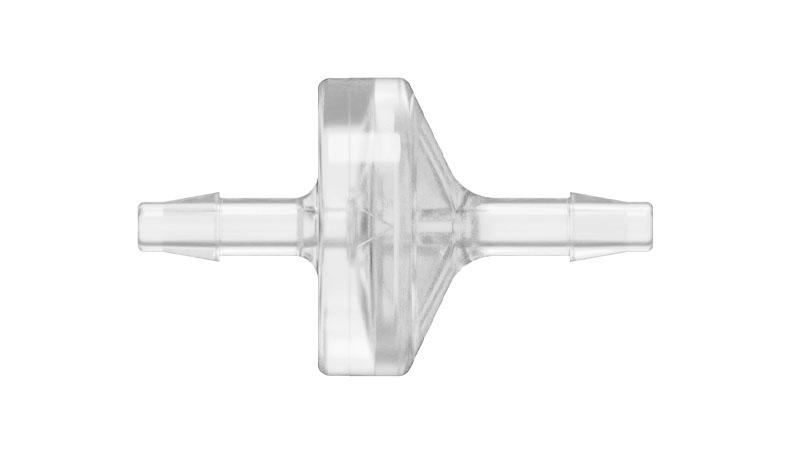

1/8 x 1/8 standard check valve

Related products

•
  Check valves

  High flow check valve

  Art.nr: N/A
  High flow check valve for one-way flow in high capacity hose systems. The valve has a pocket-to-pocket connection for hose with an outer diameter of 8.8 mm and is designed for low opening pressure and high flow with water. It is made of clear MABS and has specified leakage and pressure resistance. Connection: 8.8 mm OD hose pocket to 8.8 mm OD hose pocket Opening pressure: < 0,29 psig Flöde: > 1000 ml/min with water at 100 mbar Leakage resistance: < 0.5 ml/h at flow rate of 1 ml/h Pressure resistance: 14.5 psi Material: Clear MABS
  1 variaty
•
  Check valves

  Umbrella check valves

  Art.nr: N/A
  Umbrella check valves are Air Logic's robust solution for inline mounted check valves with low opening pressures. The plastic valve bodies with preloaded elastomer umbrellas are designed for custom opening pressures below 2 psi, with standard options at 0.75 psi and below. In the forward direction, pressure lifts the umbrella and automatically opens the valve to allow flow through the circuit. In reverse flow, the umbrella is pressed against the valve seat and prevents flow from passing. Air Logic's umbrella check valve is suitable for a wide range of OEM devices and applications, including medical devices, analytical instruments, life science, consumer products and small engines.
  30 variations
•
  Check valves

  Check valve, 200 series hose nipples

  Art.nr: N/A
  The 200 series hose nipple check valve is a compact valve for controlled flow direction and to prevent unwanted backflow in hose systems. The silicone diaphragm provides reliable operation at low opening pressure. Fits 3/32″ (2.4 mm) or 1/8″ (3.2 mm) inner diameter hose, with straight or reducing connection combinations. Made of white and transparent MABS with silicone membrane. Suitable for medical, laboratory and fluid handling applications.
  4 variations
•
  Check valves

  Check valve, 200 series hose nipple, 80369-7 compatible Luer

  Art.nr: N/A
  Check Valve with 200 Series Hose Nipple and 80369-7 Compatible Luer is a compact valve for controlled flow direction and to prevent unwanted backflow between hose and Luer connection. The silicone diaphragm provides reliable operation at low opening pressure. Fits 3/32" (2.4 mm) or 1/8" (3.2 mm) inner diameter hose and has female Luer with threaded connection. Made of white SAN and transparent MABS. Suitable for medical, laboratory and fluid handling applications.
  2 variations
