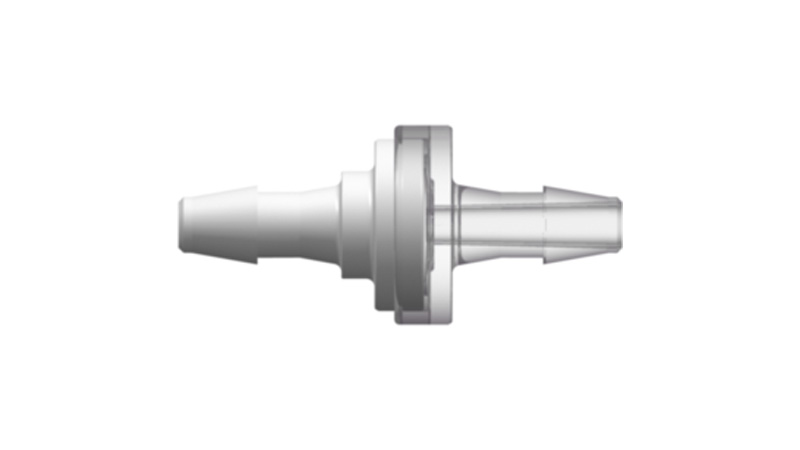

Check valve, 200 series hose nipples
The 200 series hose nipple check valve is a compact valve for controlled flow direction and to prevent unwanted backflow in hose systems.
The silicone membrane provides reliable operation at low opening pressure.
Fits 3/32″ (2.4 mm) or 1/8″ (3.2 mm) inner diameter hose, with straight or reducing connector combinations.
Made of white and transparent MABS with silicone membrane. Suitable for medical, laboratory and fluid handling applications.
Brand:
Nordson Medical
See variations
(4)
Product Overview
Nordson MEDICAL Check Valves
- Manufactured from biopharma-grade materials that comply with USP Class VI and ISO 10993
- EtO-compatible
- Stable under gamma radiation
- Manufactured in a cleanroom
Requests for quotation
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
| Article Number | Designation | Sizes | Material | Opening pressure | flow | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|---|---|
| SCV67220 | Check Valve, 200 Series Barbs | 3/32" (2.4 mm) ID Tubing x 3/32" (2.4 mm) | White and Clear MABS w/Silicone Diaphragm | .087 psig | 150 ml/min | Login to see availability and prices | ||
| SCV67220/230 | Check Valve, 200 Series Barbs | 3/32" (2.4 mm) ID Tubing x 1/8" (3.2 mm) | White and Clear MABS w/Silicone Diaphragm | .087 psig | 150 ml/min | Login to see availability and prices | ||
| SCV67230 | Check Valve, 200 Series Barbs | 1/8" (3.2 mm) ID Tubing x 1/8" (3.2 mm) | White and Clear MABS w/Silicone Diaphragm | .087 psig | 150 ml/min | Login to see availability and prices | ||
| SCV67230/220 | Check Valve, 200 Series Barbs | 1/8" (3.2 mm) x 3/32" (2.4 mm) | White and Clear MABS w/Silicone Diaphragm | .087 psig | 150 ml/min | Login to see availability and prices | ||
Related products
-
1/8-27 NPT x 1/8 threaded check valve
Art.nr: N/A1/8-27 NPT x 1/8 threaded check valve for unidirectional flow control and backflow prevention in medical and technical applications. The valve is available in Kynar, polycarbonate, polypropylene, or nylon, with a Viton or silicone diaphragm depending on the model.5 variations -
1/8-27 NPT x 3/8 threaded check valve
Art.nr: N/A1/8-27 NPT x 3/8 threaded check valve for unidirectional flow control and backflow prevention in medical and technical applications. The valve is available in several material options, including gamma-stable polycarbonate, nylon, polypropylene, Kynar, and polycarbonate, with diaphragms made of silicone, Viton, or neoprene depending on the variant. Available in versions that comply with USP Class VI and ISO 10993.7 variations -
Miniature check valves with floating disc
Art.nr: N/AMiniature check valves prevent flow in one direction and allow flow in the opposite direction. Check valves can also be called one-way valves or non-return valves. Floating disk check valves have a disk that changes position inside the valve body depending on the direction of flow of the medium. In the forward direction, the medium can flow around the disk. In reverse flow, the disk is pressed against the valve seat and stops the flow.7 variations -
1/8 x 3/16 Enlarging Check Valve
Art.nr: N/A1/8 x 3/16 enlarging check valve for unidirectional flow control and backflow protection in medical and technical applications. The valve is available in several material options, including Kynar, polycarbonate, polypropylene, and nylon, with silicone or Viton diaphragms depending on the variant. Available in versions that comply with USP Class VI and ISO 10993.7 variations
