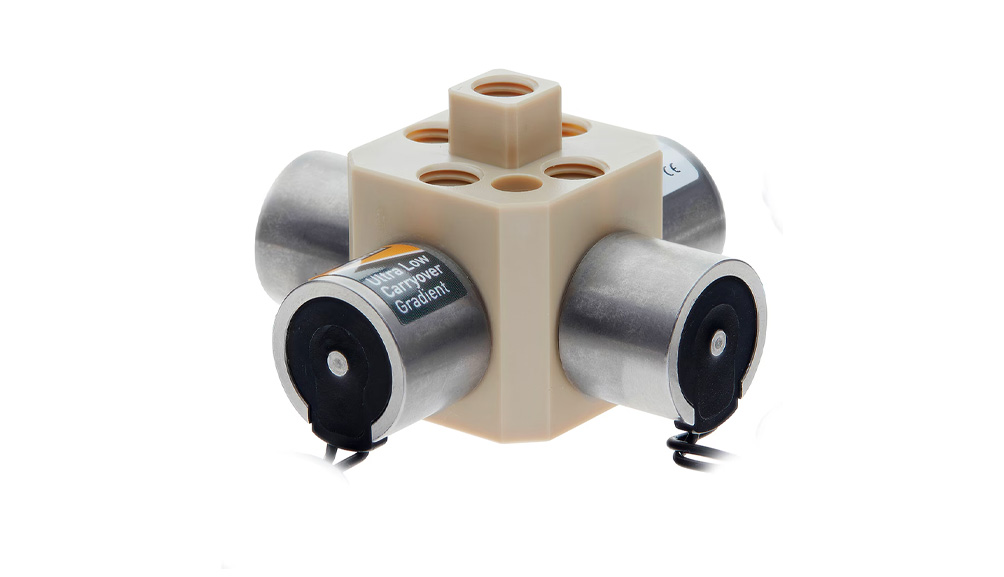

Valve with extremely low transmission gradient

The unique features of the Ultra Low Carryover Gradient Valve ensure high accuracy of gradient generation in quaternary HPLC designs.

This is achieved through a combination of fast response times and a patented low volume, high flow fluid design.

This miniaturized valve allows a reduction in the overall size of the instrument and reduces the dead volume of the system. The exceptionally long service life and resistance to crystallization ensure that the valve will last throughout the life of the instrument.

Brand: Parker Hannifin

Request offer

Product Overview

Product specification

Valve type: Normally closed
Column size: 0.03″ (0.75 mm)
Electrical connection: Locking contacts with 4.5″ (114 mm) conductors
Weight: 1.19 to 2.56 oz, 33.7 to 72.5 g
Length: 1.19″ (30.3 mm), 1.95″ (49.5 mm), 1.25″ (31.8 mm)
Width: 1.47″ (37.3 mm), 1.95″ (49.5 mm), 1.25″ (31.8 mm)
Height: 0.65″ (16.4 mm), 1.19″ (30.16 mm), 1.48″ (37.2 mm)
Power consumption of the coil: 3.0 watts per coil
Housing materials: PEEK
Cycles per lifetime: 50 million cycles
Internal leak rate: 0.15 sccm air
Industry: Analytical chemistry, clinical diagnostics
Response time: < 10 ms
Pressure classification: 45 psig (3.1 bar)
Flow rate: Up to 320 mL/min
Flow coefficient: 0.011
Application: HPLC gradient proportioning, selector valve
Activation type: Solenoid
Coil specifications met: Yes
For liquid type: Liquids
Function: Two-channel proportioning valve, four-channel proportioning valve
Maximum flow rate: 320 mL/min
Maximum liquid temperature: 50 °C (122 °F)
Maximum working pressure: 45 psig (3.1 bar)

Request for quotation

The request for quotation will be processed by our subsidiary Aldax AB (info@aldax.se)

"*"indicates required fields

Downloadable material

Ultra Low Carryover Gradient Valve Datasheet

Data sheet

English

Ultra Low Carryover Gradient Valve Brochure

Brochure

English
