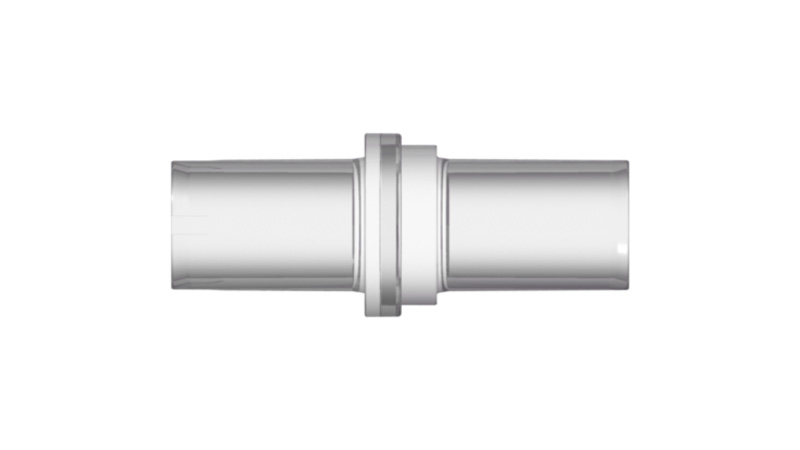

High flow check valve
High flow check valve for one-way flow in high capacity hose systems. The valve has a pocket-to-pocket connection for hose with an outer diameter of 8.8 mm and is designed for low opening pressure and high flow with water. It is made of clear MABS and has specified leakage and pressure resistance.
Connection: 8.8 mm outer diameter hose pocket to 8.8 mm outer diameter hose pocket
Opening pressure: < 0,29 psig
Flöde: > 1000 ml/min with water at 100 mbar
Leakage resistance: < 0.5 ml/h at flow rate of 1 ml/h
Pressure resistance: 14.5 psi
Material: Clear MABS
- Manufactured from biopharma-grade materials that comply with USP Class VI and ISO 10993
- EtO-compatible
- Stable under gamma radiation
- Manufactured in a cleanroom
Please fill out the form below to submit a quote request. Your request will be processed and responded to by our subsidiary, Aldax AB.
Contact information:
Phone: +46 (0)8 449 64 20
E-mail: info@aldax.se
"*"indicates required fields
| Article Number | Designation | Material | Availability | Price | Add to cart |
|---|---|---|---|---|---|
| SCV06397 | High Flow Check Valve | Clear MABS and Clear MABS | Login to see availability and prices | ||
