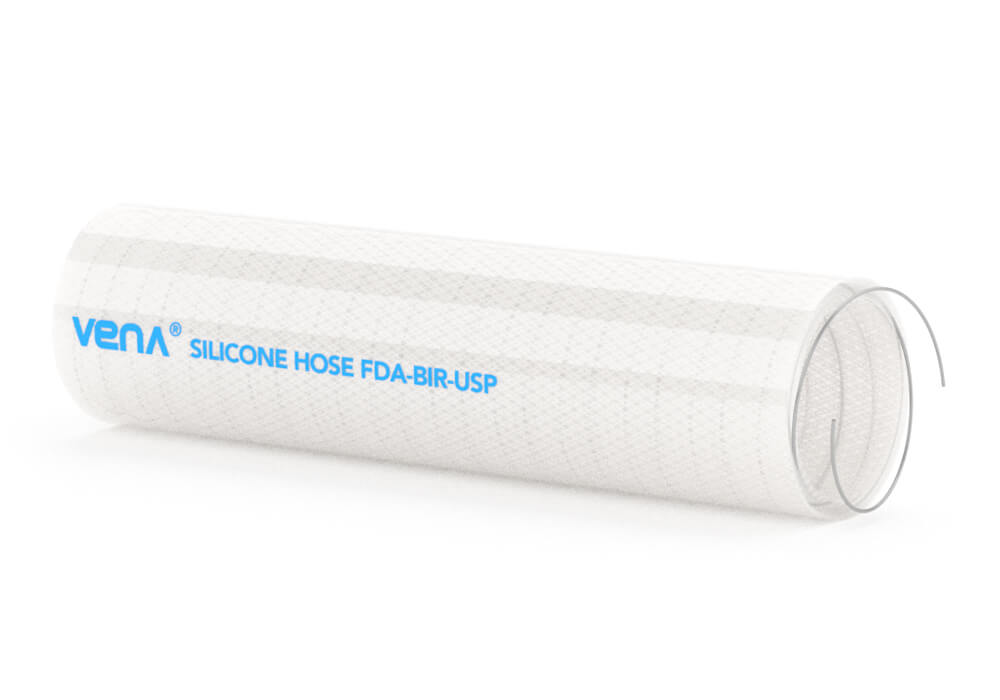

Silicone hose with double spiral
Double spiral silicone hose suitable for the food and pharmaceutical industries where high hygiene standards are required. A very flexible hose with a good bending radius.
Sold only in whole pack, 4 m/roll
- Inner tube: Smooth silicone.
- Reinforcement: Reinforcement with both polyester inserts and double stainless steel spirals.
- Outer tube: Smooth silicone.
- Tested in accordance with: *US FDA (Foods and Drugs Administration) Standard 21 CFR 177.2600, *German BfR Standard part XV, *1935/2004/EC Regulation and European Council Resolution AP 2004 (5)- silicones, *USP Class VI standard, *3A Sanitary Standard 18-03 Class I (hose), *3A Sanitary Standard 62-02 (fitted hoses).
- Temperature range: -60°C - +180°C (briefly 200°C).
| Article Number | ID (mm) | Thickness of goods (mm) | OD (mm) | Working pressure (bar) | Bursting pressure (bar) | Bending radius | Manufacturing length (m) | Order quantity | Availability | Price | Add to cart (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1213-0016 | 16 | 5.5 | 27 | 18.3 | 54.8 | 45 | 4 | Sold in rolls of 4 m | Login to see availability and prices | ||
| 1213-0019 | 19 | 5.5 | 30 | 20.5 | 61.5 | 68 | 4 | Sold in rolls of 4 m | Login to see availability and prices | ||
| 1213-0025 | 25 | 5.5 | 36 | 18.5 | 55.5 | 80 | 4 | Sold in rolls of 4 m | Login to see availability and prices | ||
| 1213-0032 | 32 | 5.5 | 43 | 16.5 | 49.5 | 100 | 4 | Sold in rolls of 4 m | Login to see availability and prices | ||
| 1213-0038 | 38 | 6.5 | 51 | 15 | 45 | 121 | 4 | Sold in rolls of 4 m | Login to see availability and prices | ||
| 1213-0050 | 51 | 6.5 | 64 | 12 | 36 | 185 | 4 | Sold in rolls of 4 m | Login to see availability and prices | ||
| 1213-0063 | 63 | 6.5 | 76 | 10 | 30 | 273 | 4 | Sold in rolls of 4 m | Login to see availability and prices | ||
| 1213-0075 | 76 | 6.5 | 89 | 7.1 | 21.3 | 318 | 4 | Sold in rolls of 4 m | Login to see availability and prices | ||
| 1213-0100 | 102 | 6.5 | 115 | 5 | 15 | 423 | 4 | Sold in rolls of 4 m | Login to see availability and prices | ||
